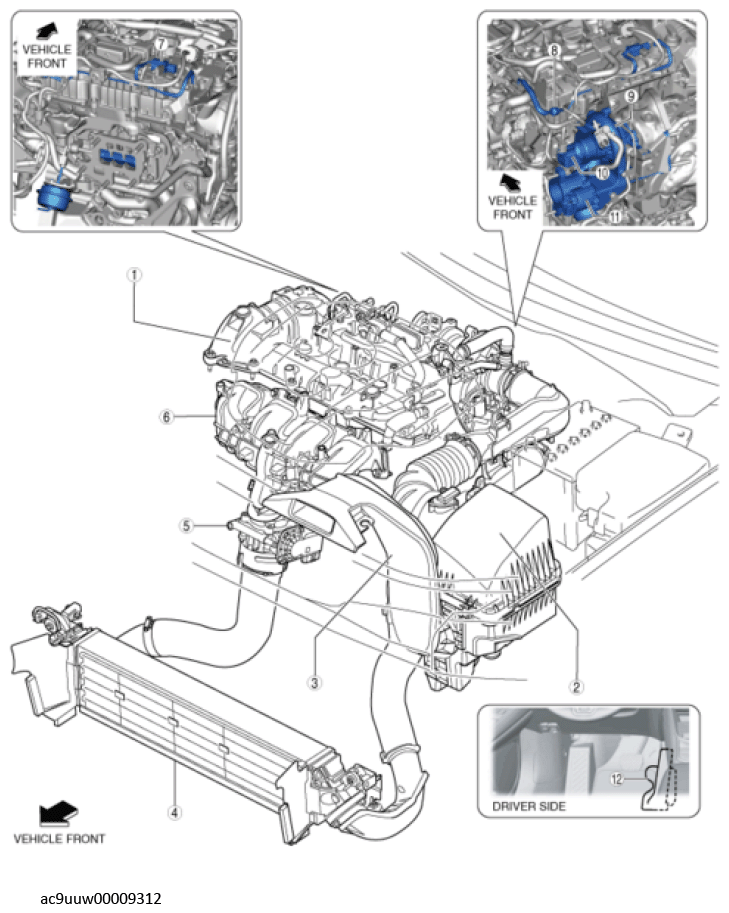

| 1 |
Cylinder head cover (built-in vacuum chamber)
(See
Vacuum Chamber Inspection .)
(See
Vacuum Chamber Removal/Installation .) |
| 2 |
Air cleaner
(See
Intake-Air System Removal/Installation .)
(See
Air Cleaner Element Removal/Installation .)
(See
Air Cleaner Element Inspection .) |
| 3 |
Fresh-air duct
(See
Intake-Air System Removal/Installation .) |
| 4 |
Charge air cooler
(See
Charge Air Cooler Removal/Installation .)
(See
Charge Air Cooler Inspection .) |
| 5 |
Throttle body
(See
Intake-Air System Removal/Installation .)
(See
Throttle Body Inspection .) |
| 6 |
Intake manifold
(See
Intake-Air System Removal/Installation .)
(See
Intake Manifold Vacuum Inspection .) |
| 7 |
Three way solenoid valve
(See
Three Way Solenoid Valve Inspection .)
(See
Three Way Solenoid Valve Removal/Installation .) |
| 8 |
Check valve (intake-air system)
(See
Check Valve (Intake-Air System) Removal/Installation .)
(See
Check Valve (Intake-Air System) Inspection .) |
| 9 |
Dynamic pressure turbo
(See
Dynamic Pressure Turbo Removal/Installation .)
(See
Dynamic Pressure Turbo Inspection .) |
| 10 |
Air bypass valve
(See
Air Bypass Valve Inspection .)
(See
Air Bypass Valve Removal/Installation .) |
| 11 |
Wastegate valve actuator
(See
Wastegate Valve Actuator Inspection .)
(See
Wastegate Valve Actuator Removal/Installation .) |
| 12 |
Accelerator pedal
(See
Accelerator Pedal Removal/Installation .) |
