Accelerator Pedal Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.

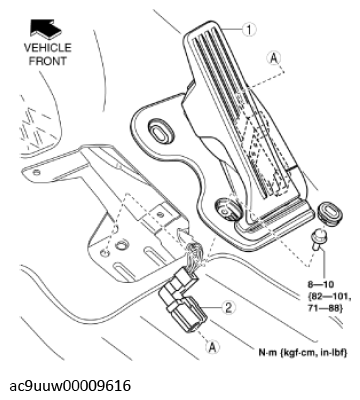

    Fig 1: Removing Accelerator Pedal
    G11436410Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 Accelerator pedal
    2 APP sensor connector
  3. Install in the reverse order of removal.
