On-Board Diagnostic - Instrument Cluster
>>
Foreword [Instrument Cluster]
>>
Troubleshooting Procedure
Troubleshooting Procedure

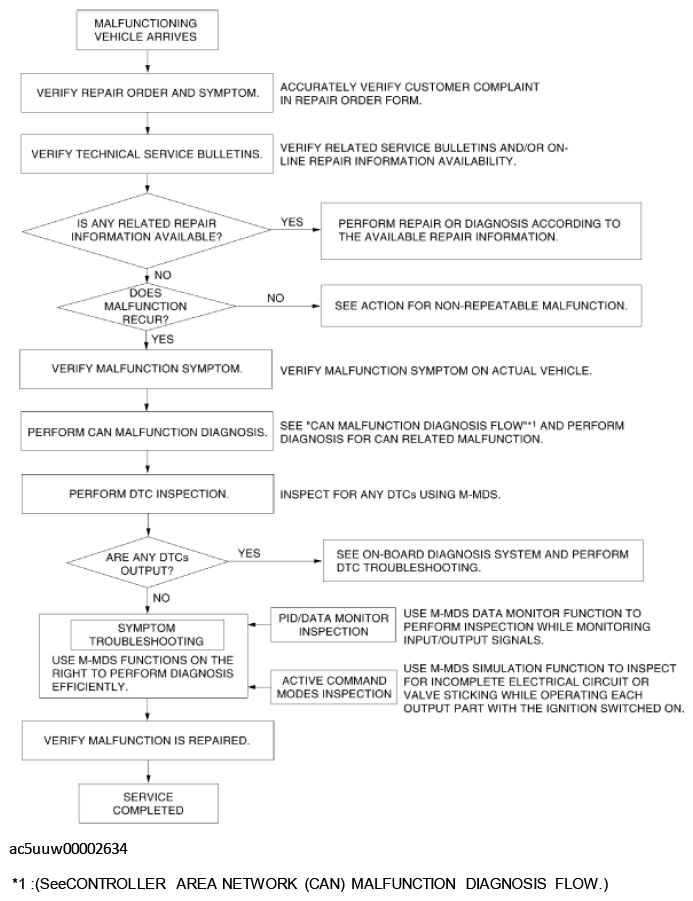

Fig 1: Instrument Cluster Troubleshooting Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
