Roof Molding Removal

  1. Insert the remover tool in the position shown in the figure.

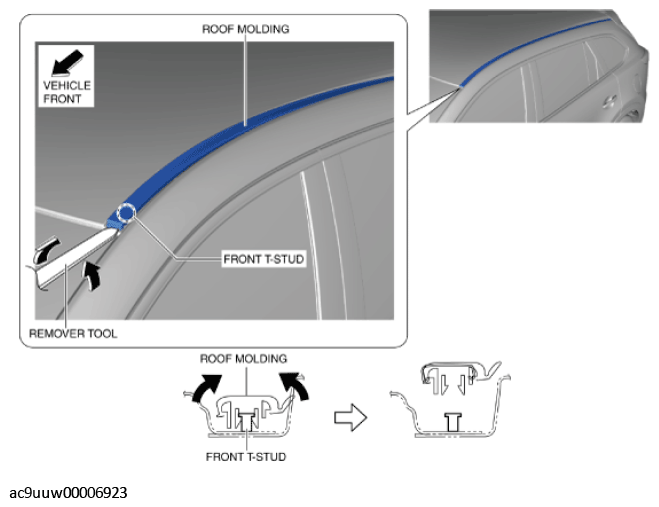

    Fig 1: Inserting Remover Tool
    G11431231Courtesy of MAZDA MOTORS CORP.
  2. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the front T-stud.
  3. Insert the remover tool in the position shown in the figure.

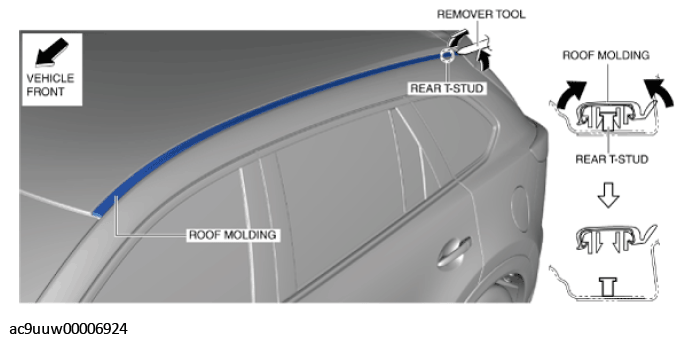

    Fig 2: Inserting Remover Tool
    G11431232Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the rear T-stud.
  5. Rotate the roof molding in the direction of arrows shown in the figure while pulling it up and remove it starting from the clips at the front of the vehicle.

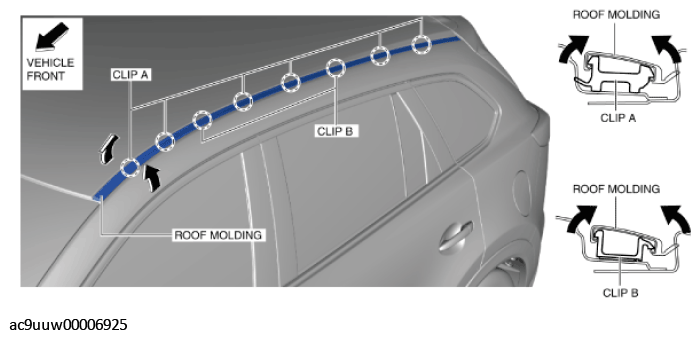

    Fig 3: Rotating Roof Molding
    G11431233Courtesy of MAZDA MOTORS CORP.
  6. Remove the roof molding.
