Roof Molding Installation

  1. Press the roof molding in the direction of the arrow shown in the figure and install it to the front T-stud.

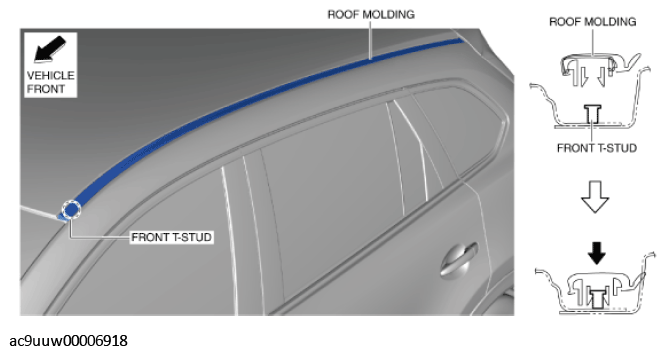

    Fig 1: Pressing Roof Molding
    G11431226Courtesy of MAZDA MOTORS CORP.
  2. Hook the roof molding to the clips.

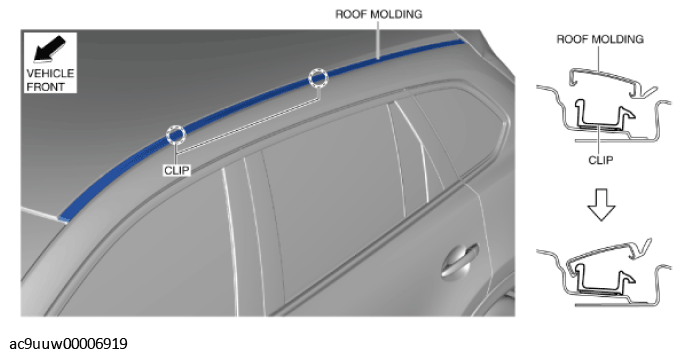

    Fig 2: Hooking Roof Molding To Clips
    G11431227Courtesy of MAZDA MOTORS CORP.
  3. Press the roof molding in the direction of the arrow shown in the figure and hook it to the clips.

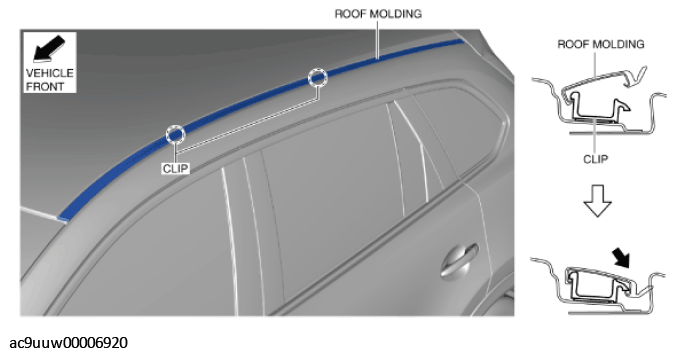

    Fig 3: Pressing Roof Molding
    G11431228Courtesy of MAZDA MOTORS CORP.
  4. Press the roof molding in the direction of the arrow shown in the figure and install it to the rear T-stud.

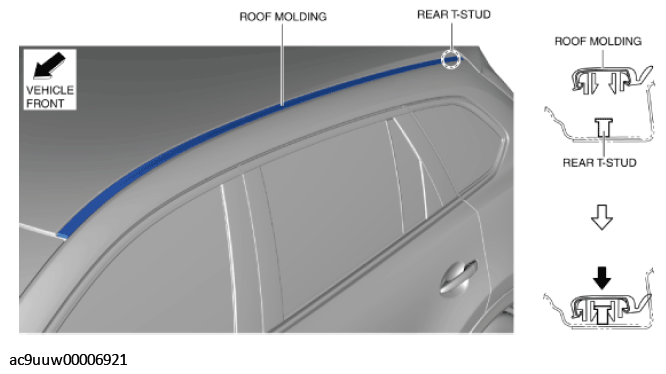

    Fig 4: Pressing Roof Molding
    G11431229Courtesy of MAZDA MOTORS CORP.
  5. Install the roof molding by pressing it in the direction of the arrow shown in the figure and hook it to the clips.

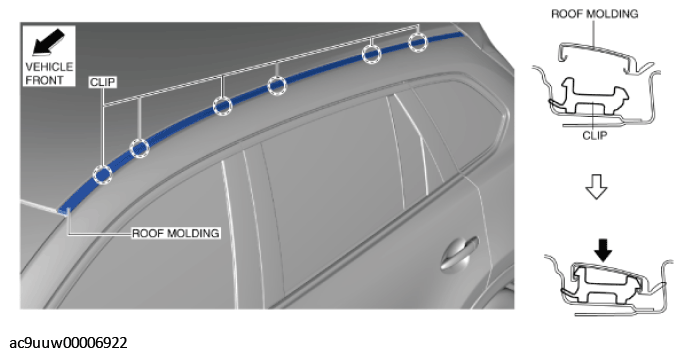

    Fig 5: Installing Roof Molding
    G11431230Courtesy of MAZDA MOTORS CORP.
