Shroud Upper Member Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Horn (See HORN REMOVAL/INSTALLATION .)
  3. Remove the bolts.

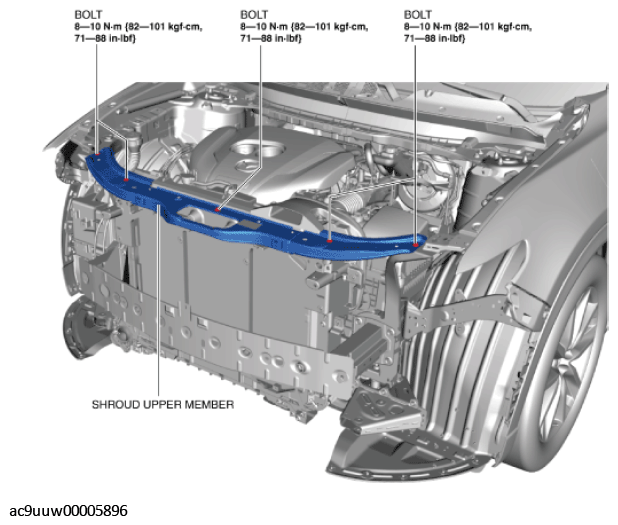

    Fig 1: Shroud Upper Member And Bolts With Torque Specification
    G11430851Courtesy of MAZDA MOTORS CORP.
  4. Remove the shroud upper member.
  5. Install in the reverse order of removal.
