Evaporative hose No. 1 installation note

  1. Install the evaporative hose No. 1 as shown in the figure.

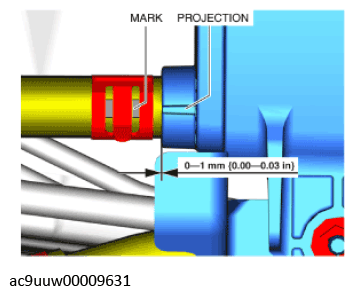

Fig 1: Checking Gap Clearance Between Charcoal Canister Unit And Evaporative Hose
G11436229Courtesy of MAZDA MOTORS CORP.
