DTC C0020-01; C0020-13; C0020-16; C0020-46; C0020-49; C0020-71; C0020-98; U3003-01; Pump Motor Malfunction Is Detected: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C0020:01	Pump motor
	C0020:13
	C0020:16
	C0020:46
	C0020:49
	C0020:71
	C0020:98
	U3003:01
DETECTION CONDITION		Pump motor malfunction is detected.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [DSC HU/CM] .)

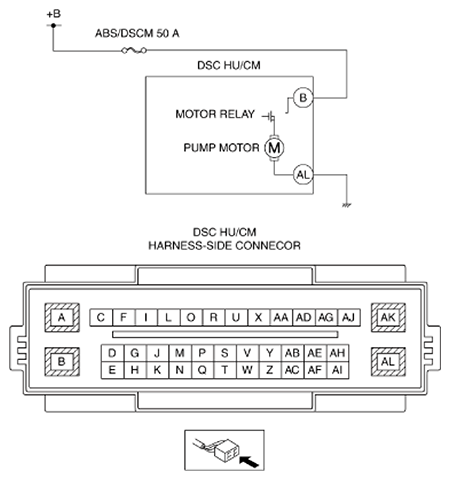

POSSIBLE CAUSE		Fuse (ABS/DSCM 50A) malfunction Open or short circuit in wiring harness between battery and DSC HU/CM terminal B Open circuit in wiring harness between DSC HU/CM terminal AL and body ground Poor connection at each connector Pump motor (DSC HU/CM) malfunction
