Electric Parking Brake Automatic Release Function During Acceleration Does Not Operate [Electric Parking Brake]: Notes
NOTE:
- If there is any vehicle malfunction complaint lodged by a customer, perform FOREWORD [ELECTRIC PARKING BRAKE] malfunction diagnosis according to the troubleshooting procedure. (See FOREWORD [ELECTRIC PARKING BRAKE] .)
Description
- Electric parking brake automatic release function during acceleration does not operate.
Possible cause
- Electric parking brake control module malfunction
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Front door latch switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction
- Short to ground in wiring harness between front door latch and lock actuator (LH) terminal L and Rear body control module (RBCM) terminal 3W
- Rear body control module (RBCM) malfunction
- Driver-side buckle switch connector or terminal malfunction
- Driver-side buckle switch malfunction
- SAS control module connector or terminal malfunction
- Short to ground in wiring harness between driver-side buckle switch terminal 5B and SAS control module terminal 2N
- SAS control module malfunction

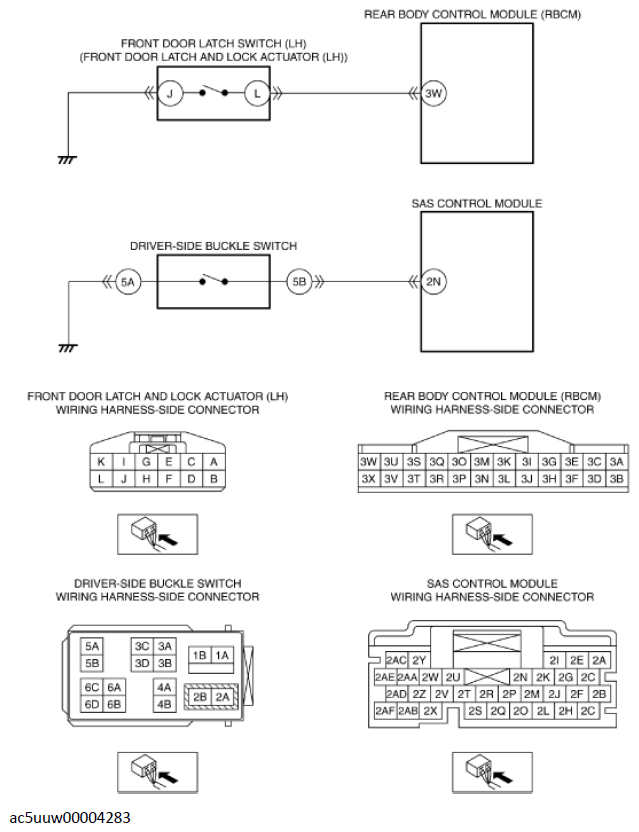

System wiring diagram
