DTC C2005-74; Electric Parking Brake Motor Gear Unit (RH) Power Transmission Impossible (Spin): Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Electric parking brake motor gear unit (RH) power transmission impossible (spin) |
| Detection condition |
- Electric parking brake control module detects an electric parking brake motor gear unit (RH) power transmission impossible (spin).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (RH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

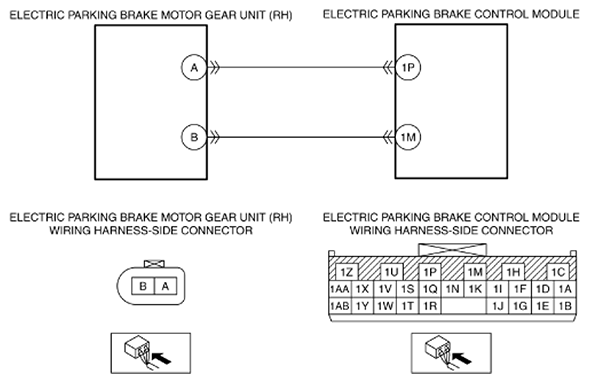

- Open circuit in wiring harness between the following terminals:
- Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal 1P
- Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal 1M
- Electric parking brake motor gear unit (RH) malfunction
- Electric parking brake control module malfunction
|
|
|
