Vacuum hose (between vacuum pump and power brake unit) installation note

  1. Install the vacuum hose (between vacuum pump and power brake unit) as shown in the figure.

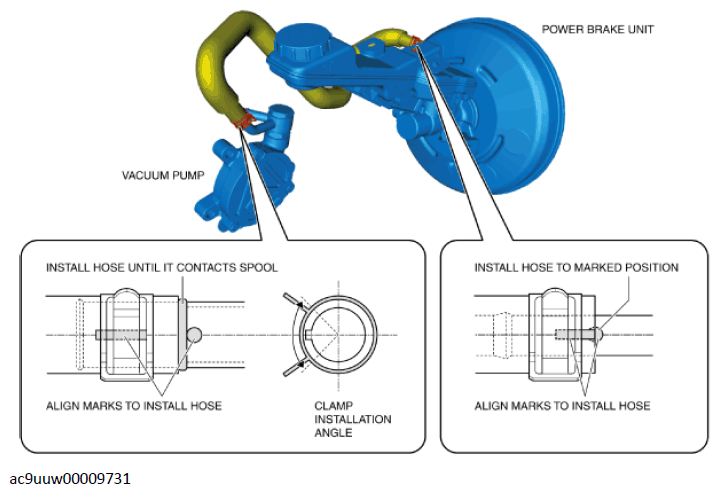

    Fig 1: Showing Align Marks To Install Hose
    G11433090Courtesy of MAZDA MOTORS CORP.
