Pedal-to-floor Clearance Inspection

Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.
Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

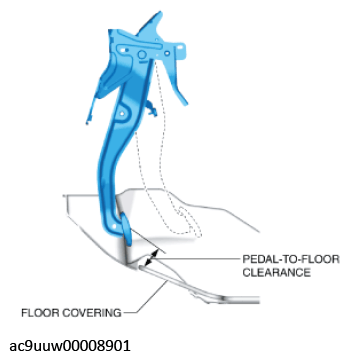

Fig 1: Measuring Pedal-To-Floor Clearance
Courtesy of MAZDA MOTORS CORP.

Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf})

99.4 mm {3.91 in} or more
- If it is less than the specification, inspect for air in the brake line. (See BRAKE FLUID AIR BLEEDING .)
