DTC C1A90-12; C1A90-16; C1A95-64; Abs Wheel-Speed Sensor Power Supply Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C1A90:12	ABS wheel-speed sensor power supply
	C1A90:16
	C1A95:64
DETECTION CONDITION		Malfunction detected in ABS wheel-speed sensor power supply voltage.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [DSC HU/CM] .)

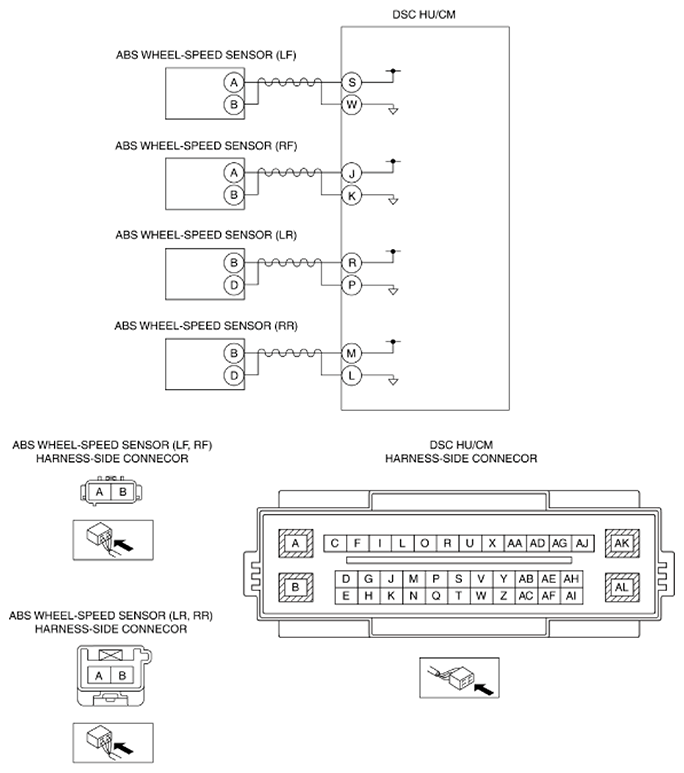

POSSIBLE CAUSE		Short to ground circuit in wiring harness between ABS wheel-speed sensor (LF) terminal A and DSC HU/CM terminal S Short to ground circuit in wiring harness between ABS wheel-speed sensor (RF) terminal A and DSC HU/CM terminal J Short to ground circuit in wiring harness between ABS wheel-speed sensor (LR) terminal B and DSC HU/CM terminal R Short to ground circuit in wiring harness between ABS wheel-speed sensor (RR) terminal B and DSC HU/CM terminal M Poor connection at each connector DSC HU/CM malfunction
