Rear Speaker Grille

CAUTION:

If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

Using the remover tool, remove the rear speaker grille while detaching clip A, B.

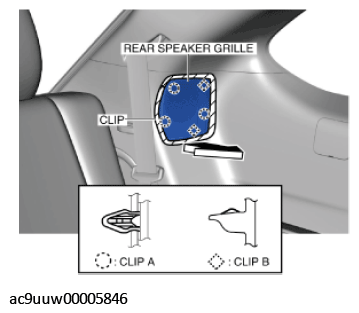

Fig 1: Removing Rear Speaker Grille Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
