Center Speaker Grille

CAUTION:

If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

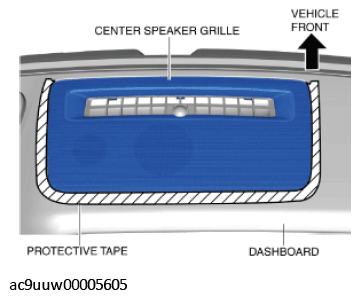

Fig 1: Affixing Protective Tape To Center Speaker Grille
Courtesy of MAZDA MOTORS CORP.
To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

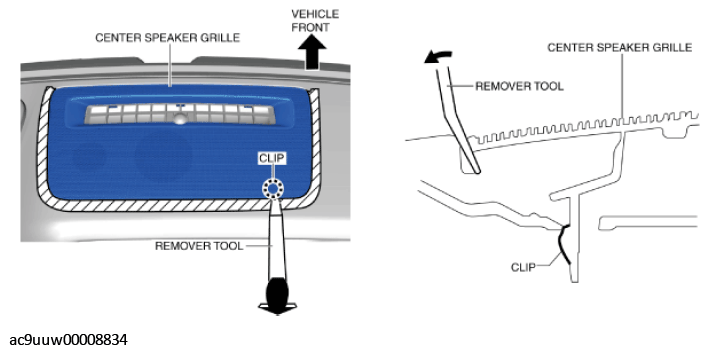

Fig 2: Checking Clearance Between Center Speaker Grille And Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.
To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

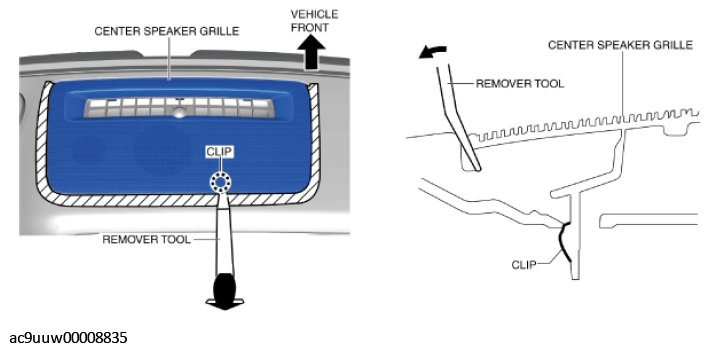

Fig 3: Detaching Clip From Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.
To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

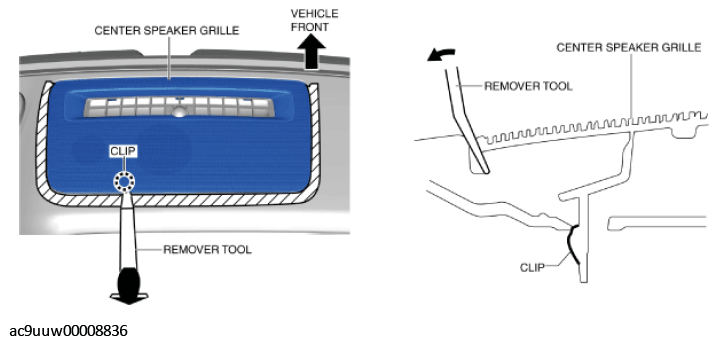

Fig 4: Checking Clearance Between Center Speaker Grille And Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.
To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

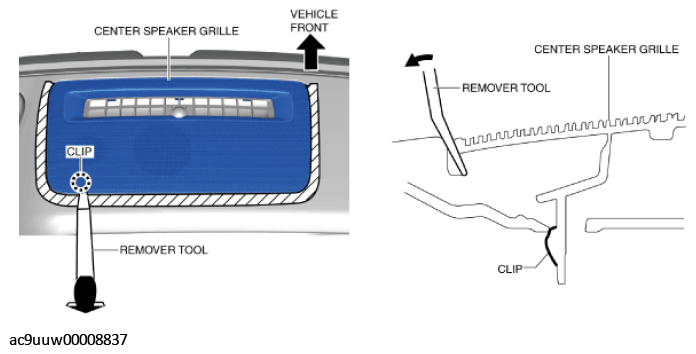

Fig 5: Detaching Clip From Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.
Using the remover tool, remove the center speaker grille in the direction of arrow shown in the figure while detaching the clips.

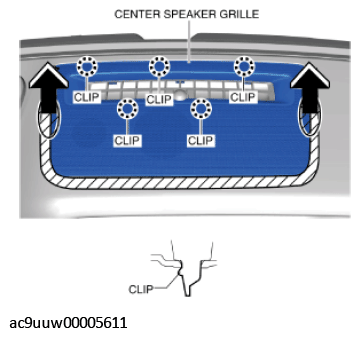

Fig 6: Removing Center Speaker Grille
Courtesy of MAZDA MOTORS CORP.
Hold the shaded area of the center speaker grille, move the center speaker grille in the direction of the arrows, and remove the center speaker grille while detaching clips.

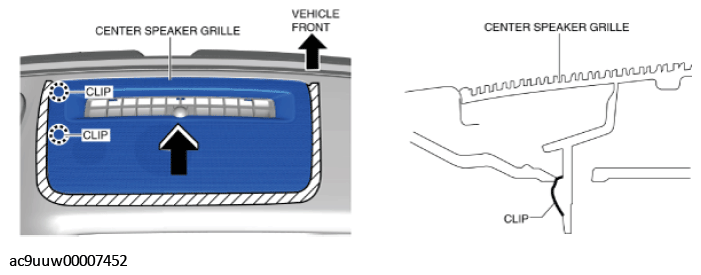

Fig 7: Moving Center Speaker Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
