Rear Side

Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)

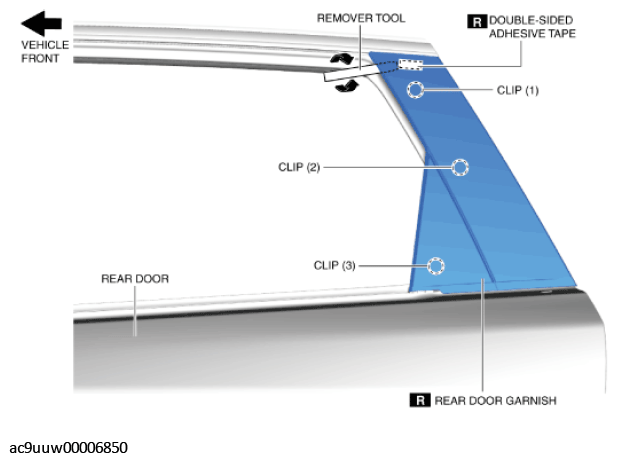

Move the remover tool in the direction of the arrow shown in the figure and while peeling off the double-sided adhesive tape, detach the rear door garnish clips (1), (2) and (3) from the rear door starting from the top of the vehicle.

Fig 1: Moving Remover Tool
Courtesy of MAZDA MOTORS CORP.

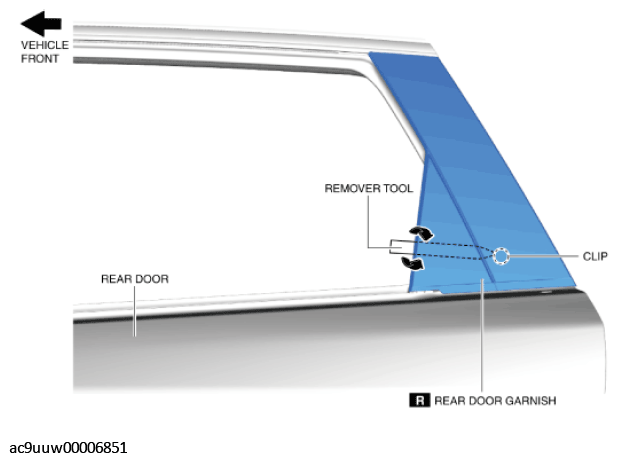

Move the remover tool in the direction of the arrow shown in the figure and detach the clip of the rear door garnish from the rear door.

Fig 2: Detaching Rear Door Garnish Clip
Courtesy of MAZDA MOTORS CORP.

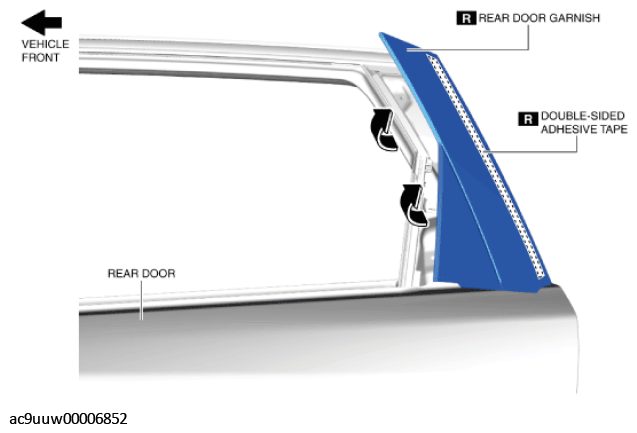

Move the rear door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.

Fig 3: Peeling Double-Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.
Remove the rear door garnish.
