Rear Door Sash Film

  1. Fully open the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  4. Peel off the rear door sash film by pulling it outward from one end.

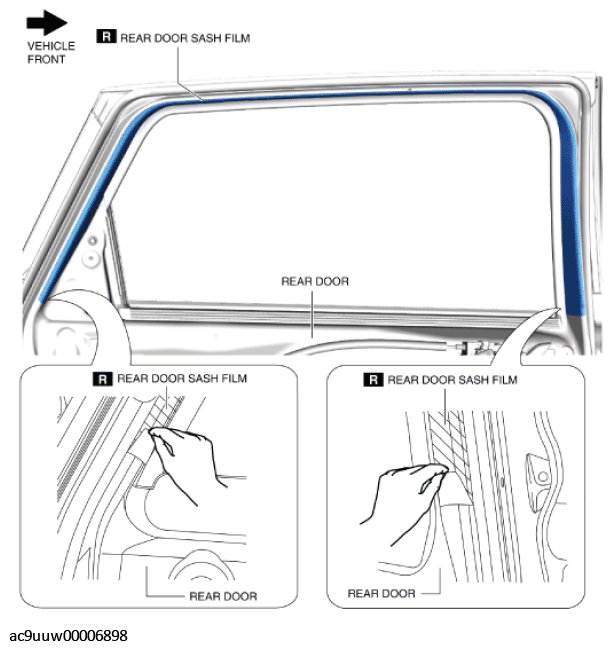

    Fig 1: Peeling Rear Door Sash Film
    G11431071Courtesy of MAZDA MOTORS CORP.
