Fuel-Filler Lid Adjustment

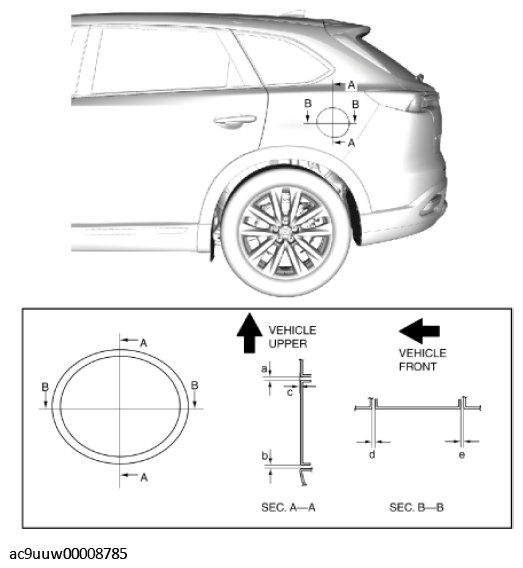

Fig 1: Measuring Clearance And Difference In Height Between Fuel-Filler Lid And Vehicle Body

Courtesy of MAZDA MOTORS CORP.

Standard clearance

1. 1.62-3.62 mm {0.064-0.142 in}
2. 0.59-2.59 mm {0.024-0.101 in}
3. -0.5-1.5 mm {-0.01-0.05 in}
4. 1.55-3.55 mm {0.062-0.139 in}
5. 1.65-3.65 mm {0.065-0.143 in}

• If the measured value exceeds the standard clearance, adjust the fuel-filler lid using the following procedure:
  1. Loosen the bolts and adjust the fuel-filler lid. (See FUEL-FILLER LID REMOVAL/INSTALLATION .)
  2. Tighten the bolts. (See FUEL-FILLER LID REMOVAL/INSTALLATION .)
  3. Verify that the clearances and differences in height between the fuel-filler lid and the vehicle body are within the standard clearance.
