Fuel-filler Lid Opener Lever

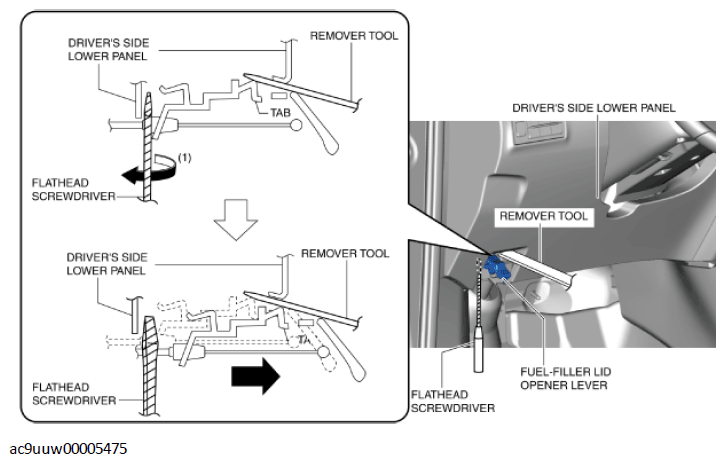

- While pulling the fuel-filler lid opener lever, insert a remover tool into the position shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the fuel-filler lid opener lever from the driver's side lower panel.
CAUTION:
- Remove the fuel-filler lid opener lever while being careful not to damage the hood release cable with the flathead screwdriver.
- Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener lever.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
