Rear washer hose D installation note

  1. When installing rear washer hose D to the liftgate grommet, install it aligning to the position shown in the figure.

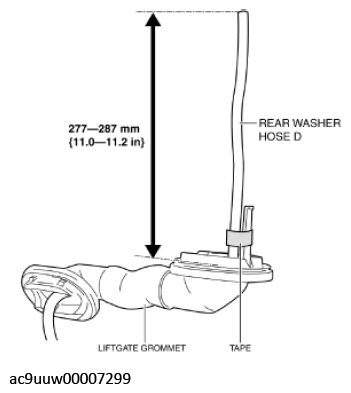

Fig 1: Aligning Rear Washer Hose D To Position
G11432950Courtesy of MAZDA MOTORS CORP.
