Rear washer hose C installation note

  1. When installing rear washer hose C to the headliner, install it aligning to the position shown in the figure.

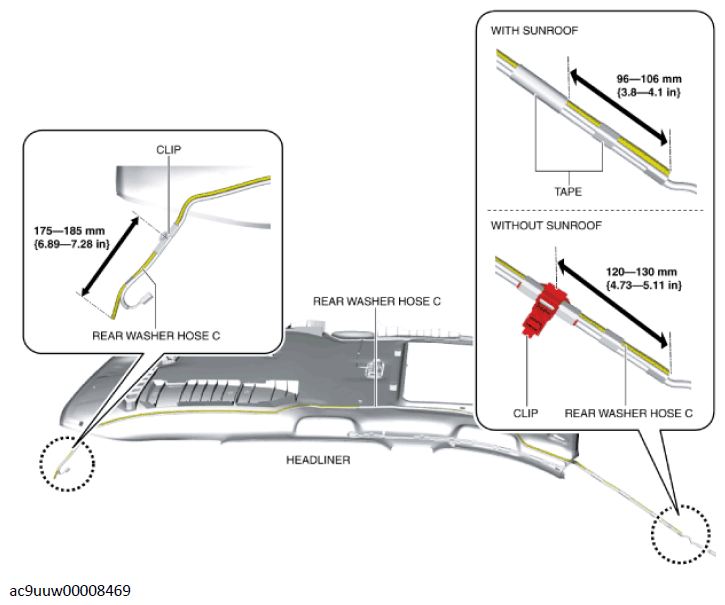

Fig 1: Aligning Rear Washer Hose C To Position
G11432944Courtesy of MAZDA MOTORS CORP.
