| Description |
- The temperature of the second-row seat warmer cannot be adjusted (temperature level cannot be switched).
- The second-row seat warmer temperature continues to rise.
|
| Possible Causes |
- Second-row seat warmer switch malfunction
- Thermistor (built into second-row seat warmer unit) malfunction
- Second-row seat warmer control unit malfunction

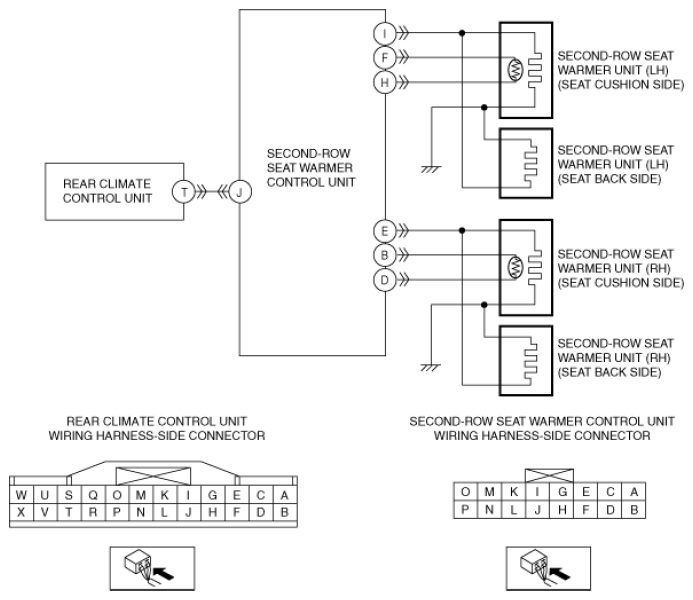

- Short to power supply in wiring harness between the following terminals:
- Second-row seat warmer control unit terminal J and rear climate control unit terminal T
|
 Courtesy of MAZDA MOTORS CORP.
|
