Second-row Seat Warmer: Notes

Description The second-row seat warmer warms the seat even though the second-row seat warmer switch is turned off.
Possible Causes
  • Second-row seat warmer switch malfunction
  • Second-row seat warmer unit malfunction
  • Short to power supply in wiring harness between the following terminals:
    • Second-row seat warmer unit terminal J and rear climate control unit terminal T

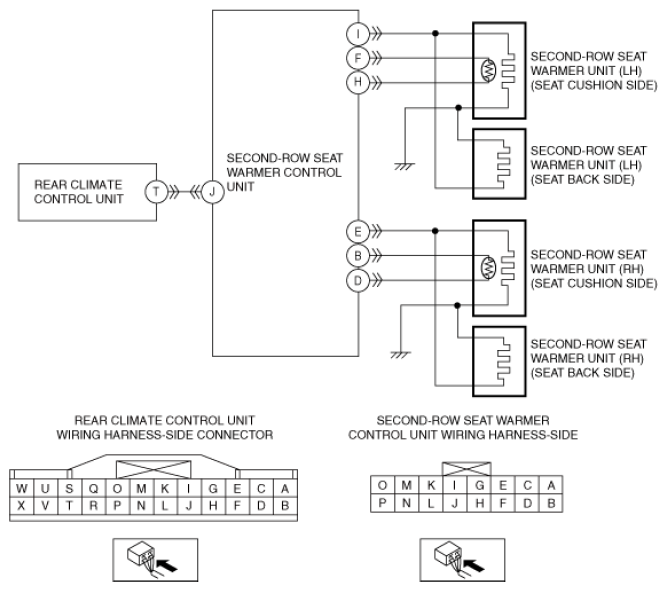

G12264152Courtesy of MAZDA MOTORS CORP.
