Front Seat Warmer (Until 2018MY): Notes

Description The front seat warmer warms the seat even though the front seat warmer switch is turned off.
Possible Causes
  • Front seat warmer switch malfunction
  • Front seat warmer control unit malfunction

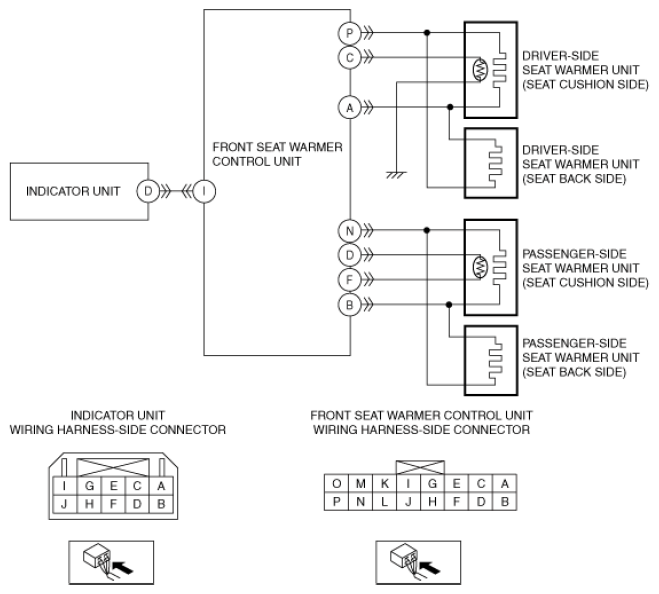

  • Short to power supply in wiring harness between the following terminals:
    • Front seat warmer control unit terminal I and indicator unit terminal D
G12264149Courtesy of MAZDA MOTORS CORP.
