| Description |
The front seat warmer does not warm up even if the front seat warmer switch is turned on. |
| Possible Causes |

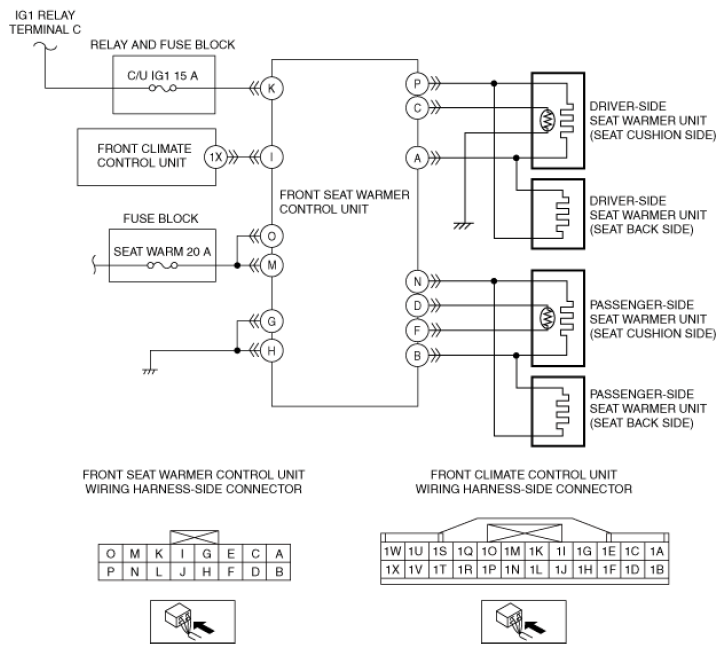

- Front seat warmer switch malfunction
- Front seat warmer control unit power supply circuit malfunction
- Short to ground in wiring harness between SEAT WARM 20 A fuse and front seat warmer control unit terminal O
- Short to ground in wiring harness between SEAT WARM 20 A fuse and front seat warmer control unit terminal M
- Open circuit in wiring harness between SEAT WARM 20 A fuse and front seat warmer control unit terminal O
- Open circuit in wiring harness between SEAT WARM 20 A fuse and front seat warmer control unit terminal M
- SEAT WARM 20 A fuse malfunction
- Short to ground in wiring harness between front seat warmer control unit terminal K and IG1 relay terminal C
- Open circuit in wiring harness between front seat warmer control unit terminal K and IG1 relay terminal C
- C/U IG1 15 A fuse malfunction
- Open circuit in wiring harness between the following terminals:
- Front seat warmer control unit terminal G and body ground
- Front seat warmer control unit terminal H and body ground
- Malfunction in wiring harness between front seat warmer control unit terminal I and front climate control unit terminal 1X
- Short to ground in wiring harness between front seat warmer control unit terminal I and front climate control unit terminal 1X
- Open circuit in wiring harness between front seat warmer control unit terminal I and front climate control unit terminal 1X
- Front climate control unit malfunction
- Front seat warmer unit malfunction
- Front seat warmer control unit malfunction
- Connector poor contact or terminal damage
|
