Front Side

Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
Open the front door.
Detach the seal rubber clip from the rear sash molding.

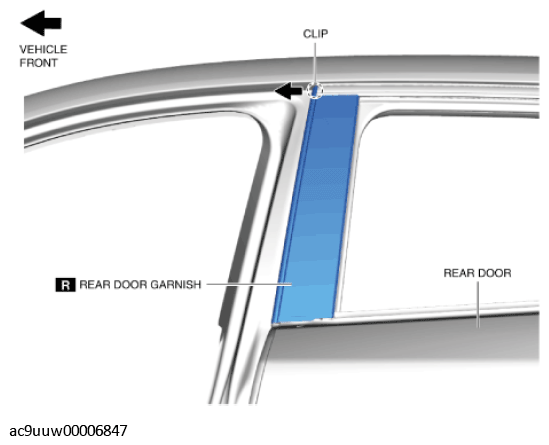

Fig 1: Detaching Seal Rubber Clip
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and while peeling off the double-sided adhesive tape, detach the rear door garnish clips (1), (2) and (3) from the rear door starting from the top of the vehicle.

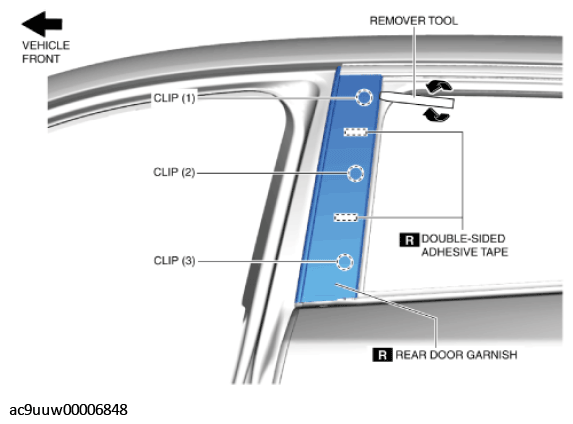

Fig 2: Detaching Rear Door Garnish Clips
Courtesy of MAZDA MOTORS CORP.
Move the rear door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.

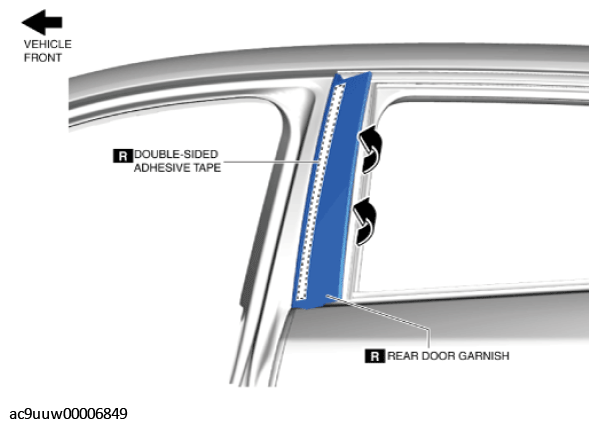

Fig 3: Moving Rear Door Garnish
Courtesy of MAZDA MOTORS CORP.
Remove the rear door garnish.
