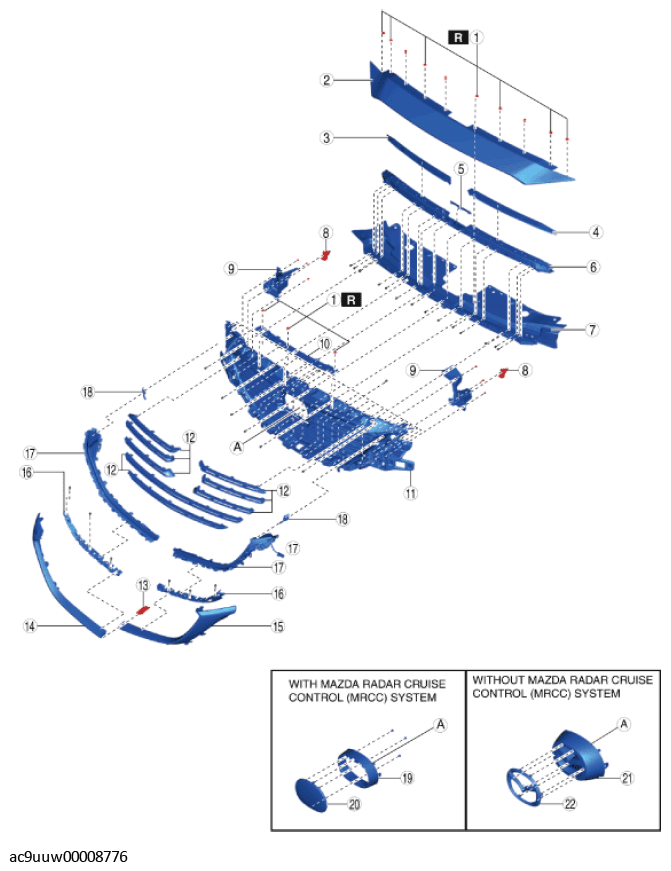

| 1 |
Rivet
(See Rivet Removal Note .) |
| 2 |
Front bumper upper face |
| 3 |
Upper grille bracket (RH) |
| 4 |
Upper grille bracket (LH) |
| 5 |
Plate |
| 6 |
Upper grille bracket |
| 7 |
Grille bracket |
| 8 |
Locator pin |
| 9 |
Bracket |
| 10 |
Bracket |
| 11 |
Radiator grille reinforcement |
| 12 |
Grille garnish |
| 13 |
Clip
(See Clip Removal Note .) |
| 14 |
Lower grille molding (RH) |
| 15 |
Lower grille molding (LH) |
| 16 |
Bracket |
| 17 |
Signature wing illumination |
| 18 |
Protector |
| 19 |
Mascot base (With Mazda radar cruise control (MRCC) system) |
| 20 |
Mascot (With Mazda radar cruise control (MRCC) system) |
| 21 |
Mascot base (Without Mazda radar cruise control (MRCC) system) |
| 22 |
Mascot (Without Mazda radar cruise control (MRCC) system) |
