Exterior Trim Location Index: 4WD

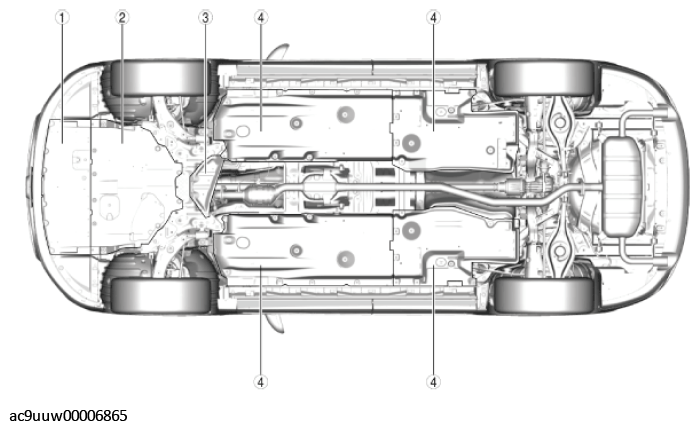

Fig 1: Exterior Trim Components Location (4WD)
G11431075Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 FRONT UNDER COVER No. 1
(See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
2 FRONT UNDER COVER No. 2
(See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
3 PLATE
(See PLATE REMOVAL/INSTALLATION .)
4 FLOOR UNDER COVER
(See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
