Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Disconnect windshield washer hose B from joint pipe A of windshield washer hose A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  3. Remove the clips.

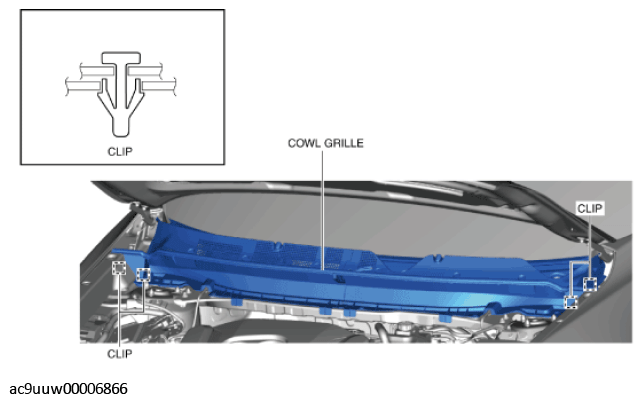

    Fig 1: Removing Cowl Grille Clips
    G11431061Courtesy of MAZDA MOTORS CORP.
  4. Remove the fasteners.

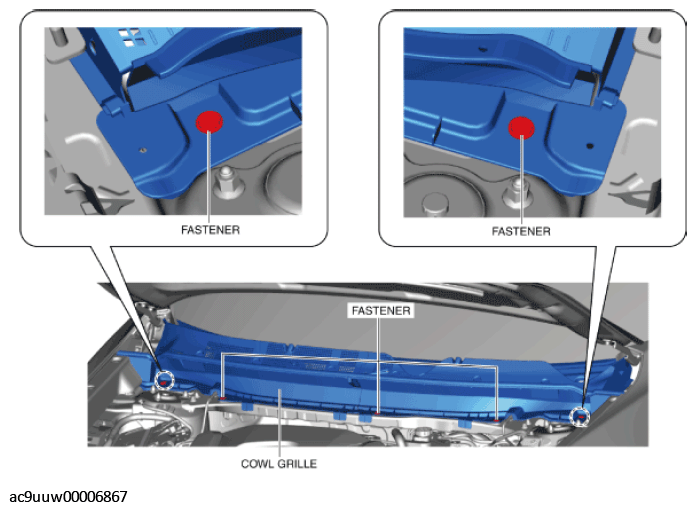

    Fig 2: Removing Cowl Grille Fasteners
    G11431062Courtesy of MAZDA MOTORS CORP.
  5. Pull the cowl grille in the direction of the arrows shown in the figure and detach the guides from the windshield.

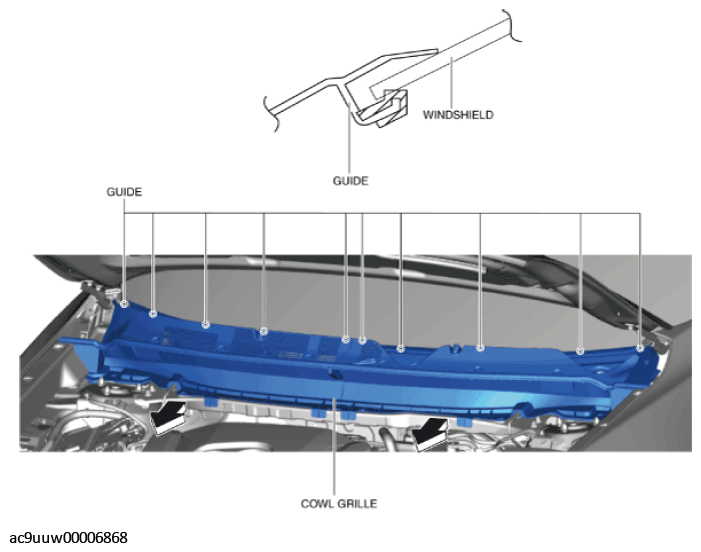

    Fig 3: Pulling Cowl Grille
    G11431063Courtesy of MAZDA MOTORS CORP.
  6. Remove the cowl grille.
  7. Install in the reverse order of removal.
