With multi-information display
X: Applicable-: Not applicable

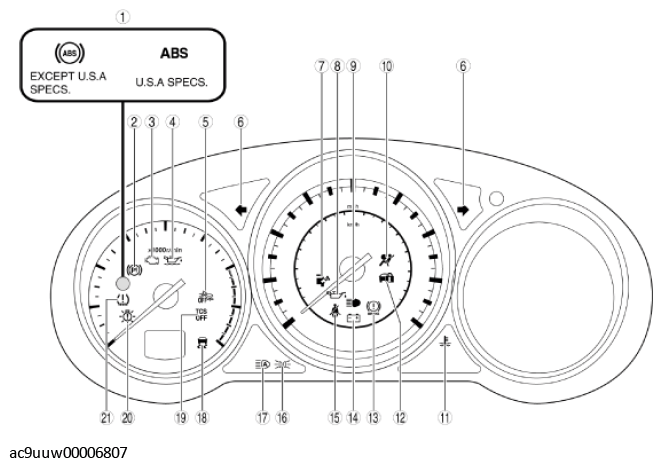

| No. | Warning light/Indicator light | Name | Message is displayed in multi-information display when warning/indicator light turns on/flashes | Message is displayed in center display when warning/indicator light turns on/flashes | Comment | Warning/indicator light turned on when ignition is switched ON (engine off or on) |
|---|---|---|---|---|---|---|
| 1 | ABS warning light | - | x | - | x | |
| 2 | Electric parking brake warning light | x | - | - | - | |
| 3 | Check engine light | - | x | - | x | |
| 4 | Engine oil level warning light | x | x | - | - | |
| 5 | Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light | - | - | With SBS/SCBS | x | |
| 6 | Turn signal/hazard warning indicator lights | - | - | - | - | |
| 7 | Check fuel cap warning light | x | x | - | x | |
| 8 | Engine oil warning light | - | x | - | x | |
| 9 | Headlight high-beam indicator light | - | - | - | - | |
| 10 | Air bag/front seat belt pretensioner system warning light | - | x | - | x | |
| 11 | Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) | x | x | - | x | |
| 12 | Security indicator light | - | - | - | x | |
| 13 | Brake system warning light | - | x | - | x | |
| 14 | Charging system warning light | x | x | - | x | |
| 15 | Seat belt warning light | - | - | - | - | |
| 16 | Lights-on indicator light | x | - | - | - | |
| 17 | HBC indicator light (green)/HBC warning light (amber) | x | x | With high beam control (HBC) system | x | |
| 18 | TCS/DSC indicator light | - | x | - | x | |
| 19 | TCS OFF indicator light | - | - | - | x | |
| 20 | LED headlight warning light | - | x | - | - | |
| 21 | Tire pressure monitoring system warning light | x | x | With TPMS | x |
