Without multi-information display

Connect the M-MDS to the DLC-2.
After vehicle identification, select the following from the M-MDS initialization screen.
1. Select "Data logger"
2. Select "Module"
3. Select "IC"
Using the simulation function item LCD_SEG, verify that the LDC displays as shown in the following figure.
- If the LCD display is not as shown in the figure, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

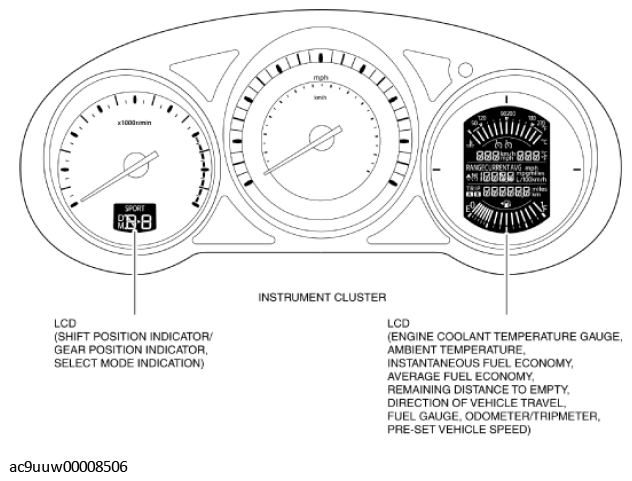

  Fig 1: Instrument Cluster And LCD
  Courtesy of MAZDA MOTORS CORP.
