With multi-information display

  1. Connect the M-MDS to the DLC-2.
  2. After vehicle identification, select the following from the M-MDS initialization screen.
    1. Select "Data logger"
    2. Select "Module"
    3. Select "IC"
  3. Using the simulation function item LCD_SEG, verify that the LDC displays as shown in the following figure.

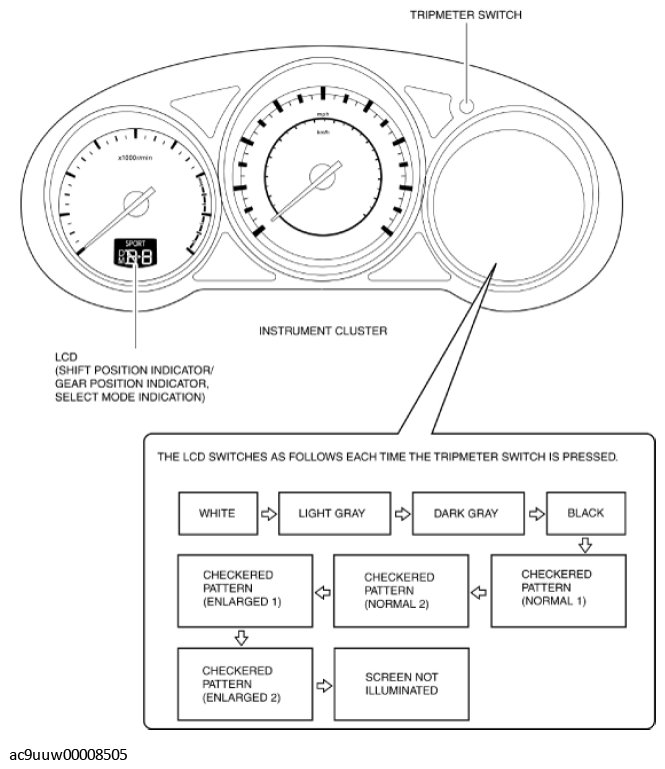

    Fig 1: Tripmeter Switch, Instrument Cluster And LCD
    G11434813Courtesy of MAZDA MOTORS CORP.
