CX-9 Touring, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
On-Board Diagnostic - Connectivity Master Unit
>>
On-Board Diagnostic Wiring Diagram [Connectivity Master Unit]
>>
With Bose®
With Bose®

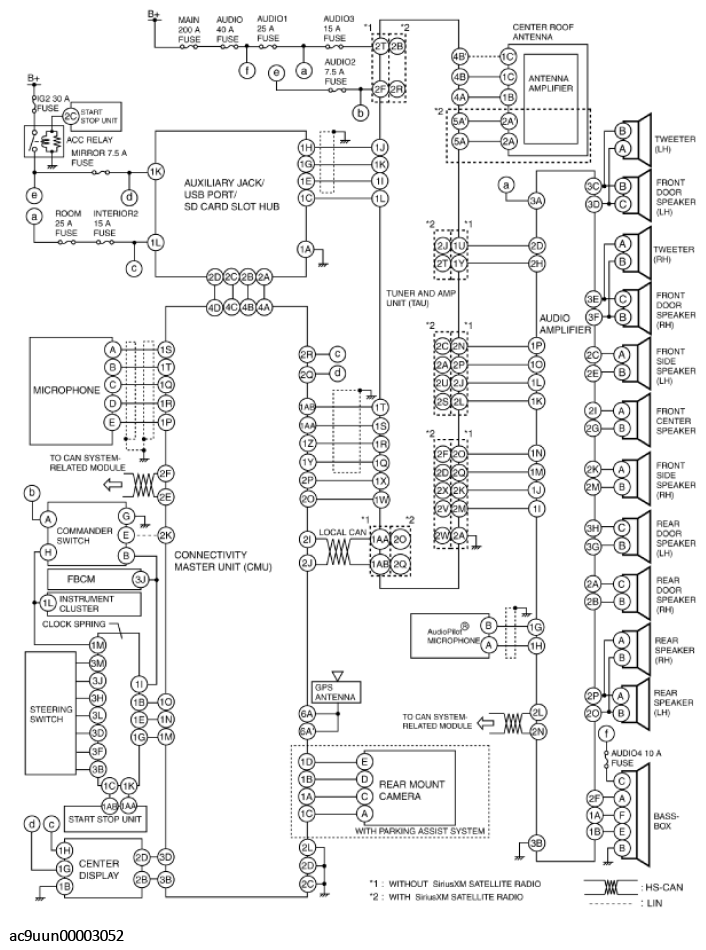

Fig 1: Connectivity Master Unit On-Board Diagnostic Wiring Diagram (With Bose®)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
