Without Bose®
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Speaker circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detected a short to ground or short to power supply in the speaker circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Tuner and amp unit (TAU) connector or terminal malfunction
- Front door speaker (LH) connector or terminal malfunction
- Tweeter (LH) connector or terminal malfunction

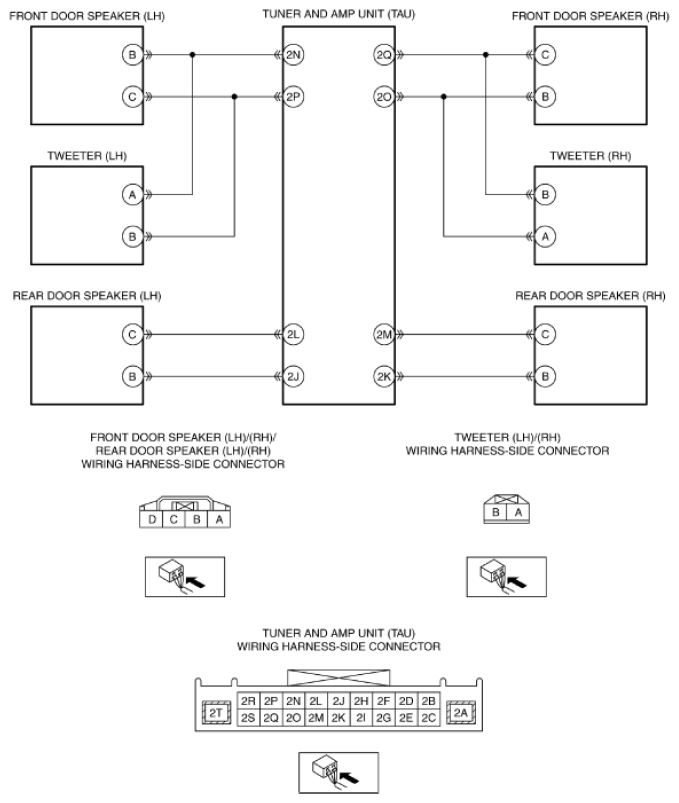

- Short to ground in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2N-Front door speaker (LH) terminal B
- Tuner and amp unit (TAU) terminal 2P-Front door speaker (LH) terminal C
- Tuner and amp unit (TAU) terminal 2N-Tweeter (LH) terminal A
- Tuner and amp unit (TAU) terminal 2P-Tweeter (LH) terminal B
- Short to power supply in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2N-Front door speaker (LH) terminal B
- Tuner and amp unit (TAU) terminal 2P-Front door speaker (LH) terminal C
- Tuner and amp unit (TAU) terminal 2N-Tweeter (LH) terminal A
- Tuner and amp unit (TAU) terminal 2P-Tweeter (LH) terminal B
- Front door speaker (LH) malfunction
- Tweeter (LH) malfunction
- Front door speaker (RH) connector or terminal malfunction
- Tweeter (RH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2Q-Front door speaker (RH) terminal C
- Tuner and amp unit (TAU) terminal 2O-Front door speaker (RH) terminal B
- Tuner and amp unit (TAU) terminal 2Q-Tweeter (RH) terminal B
- Tuner and amp unit (TAU) terminal 2O-Tweeter (RH) terminal A
- Short to power supply in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2Q-Front door speaker (RH) terminal C
- Tuner and amp unit (TAU) terminal 2O-Front door speaker (RH) terminal B
- Tuner and amp unit (TAU) terminal 2Q-Tweeter (RH) terminal B
- Tuner and amp unit (TAU) terminal 2O-Tweeter (RH) terminal A
- Front door speaker (RH) malfunction
- Tweeter (RH) malfunction
- Rear door speaker (LH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2L-Rear door speaker (LH) terminal C
- Tuner and amp unit (TAU) terminal 2J-Rear door speaker (LH) terminal B
- Short to power supply in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2L-Rear door speaker (LH) terminal C
- Tuner and amp unit (TAU) terminal 2J-Rear door speaker (LH) terminal B
- Rear door speaker (LH) malfunction
- Rear door speaker (RH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2M-Rear door speaker (RH) terminal C
- Tuner and amp unit (TAU) terminal 2K-Rear door speaker (RH) terminal B
- Short to power supply in wiring harness between the following terminals:
- Tuner and amp unit (TAU) terminal 2M-Rear door speaker (RH) terminal C
- Tuner and amp unit (TAU) terminal 2K-Rear door speaker (RH) terminal B
- Rear door speaker (RH) malfunction
- Tuner and amp unit (TAU) malfunction
|
|
|
