On-Board Diagnostic Wiring Diagram [Forward Sensing Camera (FSC)]
On-Board Diagnostic Wiring Diagram [Forward Sensing Camera (FSC)]

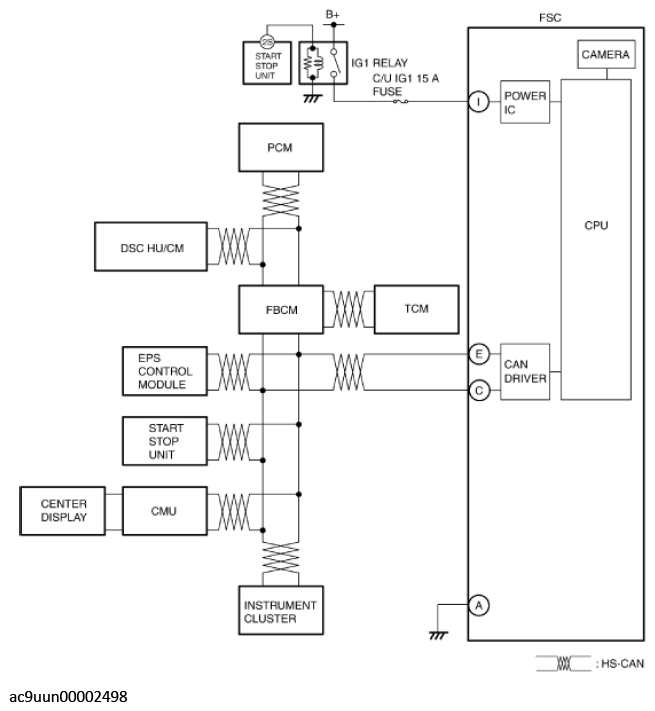

Fig 1: Forward Sensing Camera Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
