Horn HI

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  3. Disconnect the connector.

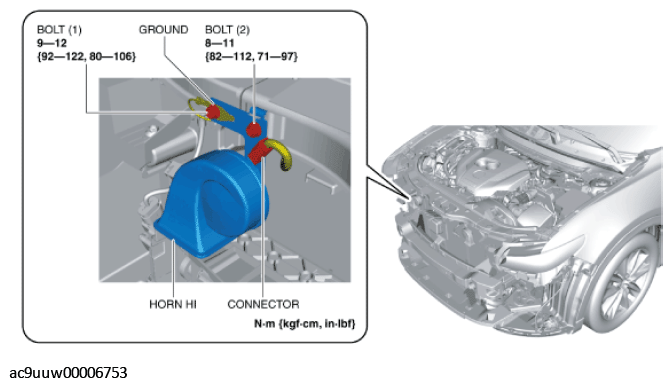

    Fig 1: Horn High, Connector, Ground And Bolts With Torque Specification
    G11434805Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt (1).
  5. Remove the ground.
  6. Remove the bolt (2).
  7. Remove the horn HI.
  8. Install in the reverse order of removal.
