Transfer oil seal (RH) No. 1

Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

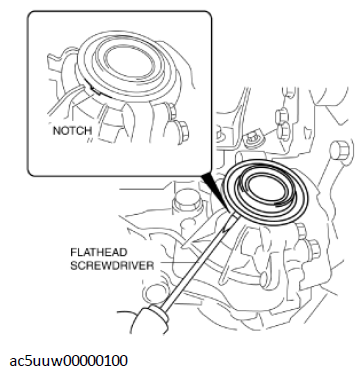

Insert a flathead screwdriver into the notch of the transfer and remove the oil seal (RH) No. 1.

Fig 1: Inserting Flathead Screwdriver Into Notch Of Transfer
Courtesy of MAZDA MOTORS CORP.

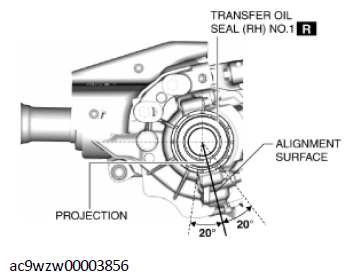

Install the new transfer oil seal (RH) No. 1 projection to within the range shown in the figure. (with projection type only)

Fig 2: Transfer Oil Seal (RH) No. 1 Projection Installation Range
Courtesy of MAZDA MOTORS CORP.

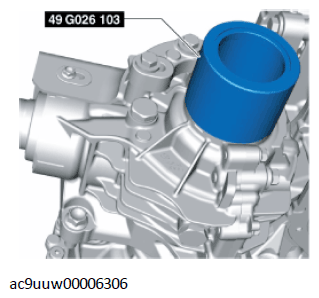

Using the SST and a hammer, tap the new seal into place.

Fig 3: Tapping Seal Into Place Using SST
Courtesy of MAZDA MOTORS CORP.
Coat the lip of the oil seal with transfer oil.
Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
