Shroud Upper Member Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Horn (See HORN REMOVAL/INSTALLATION .)
  3. Remove the bolts.

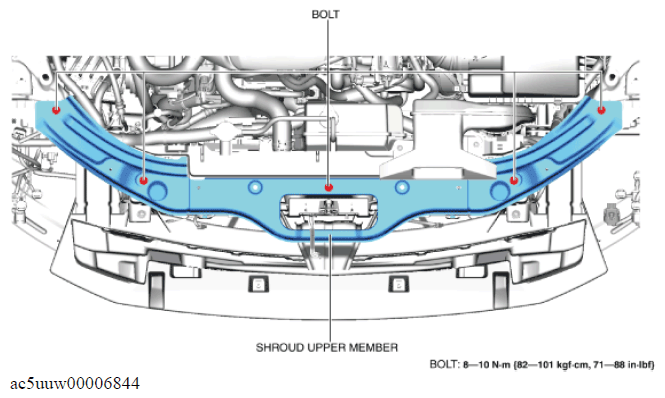

    Fig 1: Removing Shroud Upper Member Bolts
    G11412476Courtesy of MAZDA MOTORS CORP.
  4. Remove the shroud upper member.
  5. Install in the reverse order of removal.
