Using instrument cluster (without center display)

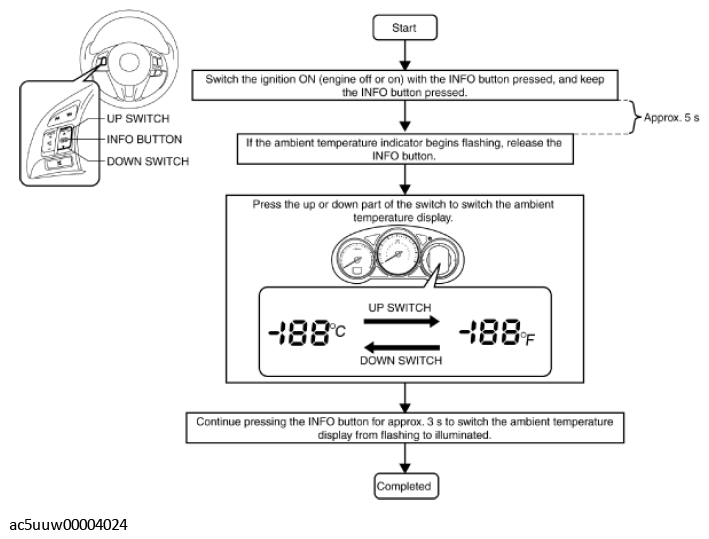

Fig 1: Instrument Cluster Process Chart

G11427809

Courtesy of MAZDA MOTORS CORP.
