Oil Seal (Control Valve Body) Replacement

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Disconnect the control valve body connector.
    Fig 1: Identifying Control Valve Body Connector
    G10937264Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
    • Water or foreign matter entering the connector can cause a poor connection or corrosion. Be careful not to allow water droplets or foreign matter to get on the connector when disconnecting it.
  4. Remove the hose clamp.

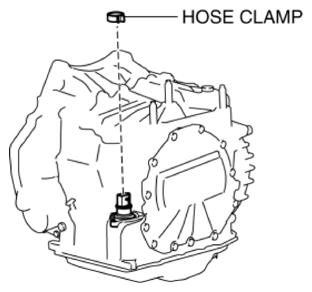

    Fig 2: Removing Hose Clamp
    G10937265Courtesy of MAZDA MOTORS CORP.
  5. Cut the oil seal using a utility knife as shown in the following illustration.

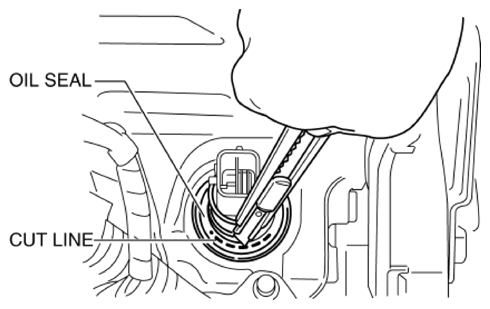

    Fig 3: Cutting Oil Seal Using Utility Knife
    G10937266Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not damage the transaxle case.
    • Do not damage the control valve body coupler connector.
    • To prevent foreign matter penetration, clean the oil seal area thoroughly and cut the oil seal so as not to leave cutting fragments.
  6. Using a tape-wrapped flathead screwdriver, remove the oil seal from the transaxle case.

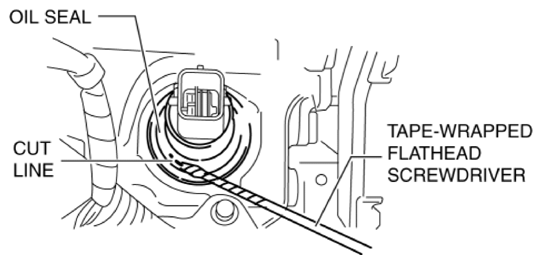

    Fig 4: Removing Oil Seal From Transaxle Case Using Tape-Wrapped Flathead Screwdriver
    G10937267Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Remove the oil seal by tapping the tip of a tape-wrapped flathead screwdriver on the inner circumference surface A area of the oil seal.

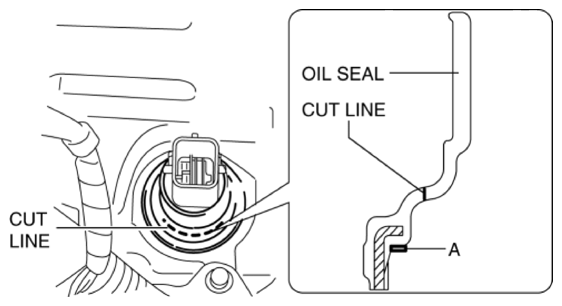

    Fig 5: Removing Oil Seal Using Tape-Wrapped Flathead Screwdriver
    G10937268Courtesy of MAZDA MOTORS CORP.
  7. Temporarily install the oil seal (control valve body) by hand.
  8. Using the SSTs  and a hammer, install the oil seal (control valve body) so that it is not tilted and there is no height difference between the transaxle case surface and the end surface of the oil seal.

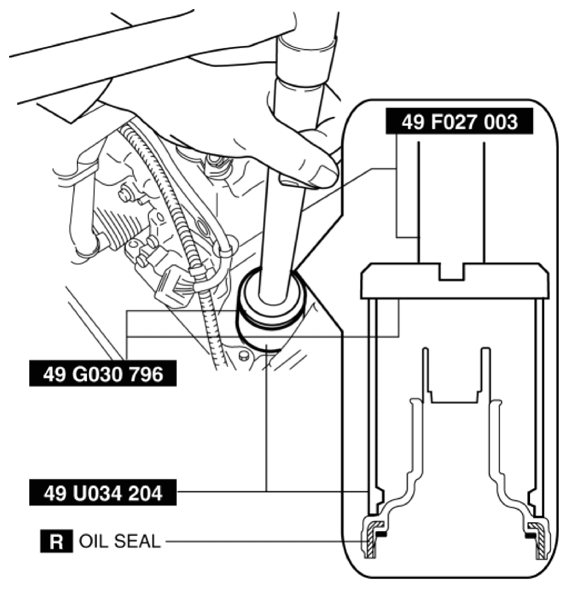

    Fig 6: Installing Oil Seal Using Hammer
    G10937269Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When installing the oil seal (control valve body), do not mistakenly hit the control valve body connector with the hammer. Otherwise the control valve body connector could be damaged making it no longer waterproof.
  9. Install a new hose clamp to the position shown in the figure.
    CAUTION:
    • If the hose clamp is reused it could cause ATF leakage, therefore use a new hose clamp.
    • Install the hose clamp tab to within the range shown in the figure.

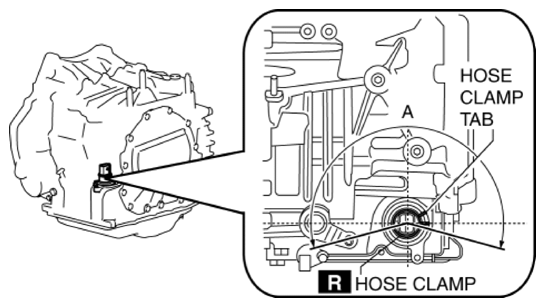

      Fig 7: Installing Hose Clamp Tab
      G10937270Courtesy of MAZDA MOTORS CORP.

      A: 210°

    • Install the hose clamp so that it does not interfere with the top and bottom flanges of the oil seal to maintain the waterproofing integrity.

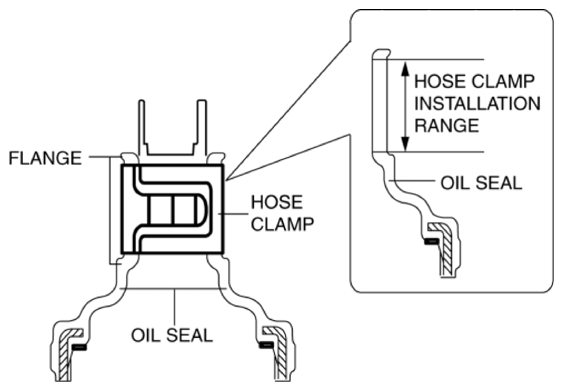

    Fig 8: Installing Hose Clamp
    G10937271Courtesy of MAZDA MOTORS CORP.
  10. Connect the control valve body connector.
    CAUTION:
    • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
    • Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
    • Insert the connector straight as the connector terminal could be damaged.
    • Rotate the connector lever until a click is heard.

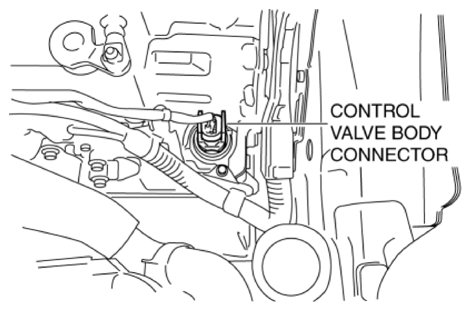

    Fig 9: Identifying Control Valve Body Connector
    G10937272Courtesy of MAZDA MOTORS CORP.
  11. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  12. Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
