Tire Installation Note

Set the tire at point A (200 mm {7.87 in} away from the valve hole), and install the tire.

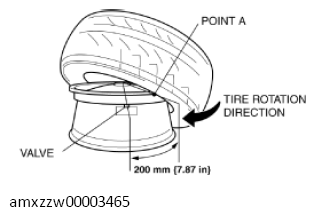

Fig 1: Setting Tire Point A Away From Valve Hole
Courtesy of MAZDA
Set the tire at point A (200 mm {7.87 in} away from the valve hole).

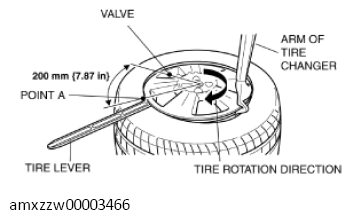

Fig 2: Setting Tire Point A Away From Valve Hole
Courtesy of MAZDA
NOTE:
- Using the tire lever as a support will aid in preventing the tire from deviating from point A.
Install the tire.
