System Wiring Diagram [Direct Tire Pressure Monitoring System (TPMS)]
System Wiring Diagram [Direct Tire Pressure Monitoring System (TPMS)]

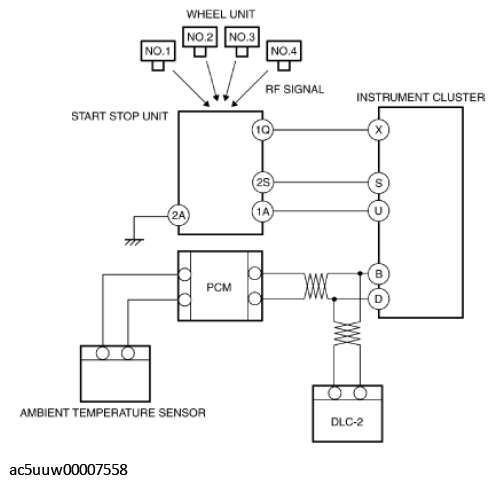

Fig 1: Direct Tire Pressure Monitoring System (TPMS) Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
