Suspension Links Installation Note

Remove the protector. (With protector)

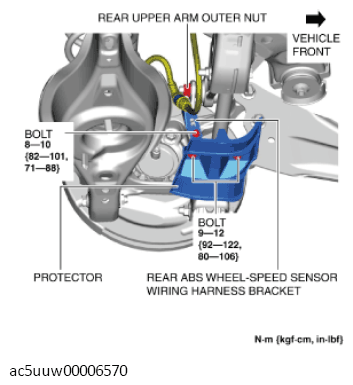

Fig 1: Rear ABS Wheel-Speed Sensor Wiring Harness Bracket, Protector And Bolts With Tightening Torque
Courtesy of MAZDA MOTORS CORP.
Remove the rear ABS wheel-speed sensor wiring harness bracket.
When installing the joint sections with rubber bushings, perform the following procedures.
1. Temporarily tighten the bolts and nuts with the vehicle lifted up.
2. Lower the vehicle to the ground and tighten the bolts and nuts to the specified torque.
