Rear Upper Arm Bushing Removal Note

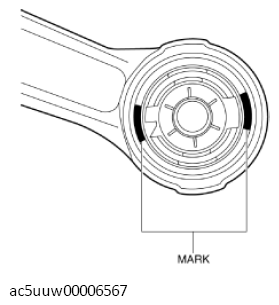

  1. Mark the rear upper arm as shown in the figure.
    Fig 1: Marking Rear Upper Arm
    G11428902Courtesy of MAZDA MOTORS CORP.
  2. Press the rear upper arm bushing out using the SSTs.
    CAUTION:
    • Set using the SST(49 U034 204) as shown in the figure to prevent damaging the rear upper arm and rear upper arm bushing and remove the rear upper arm bushing.
    Fig 2: Pressing Rear Upper Arm Bushing Out Using SSTs
    G09074727Courtesy of MAZDA MOTORS CORP.
