Rear Suspension Location Index: AWD

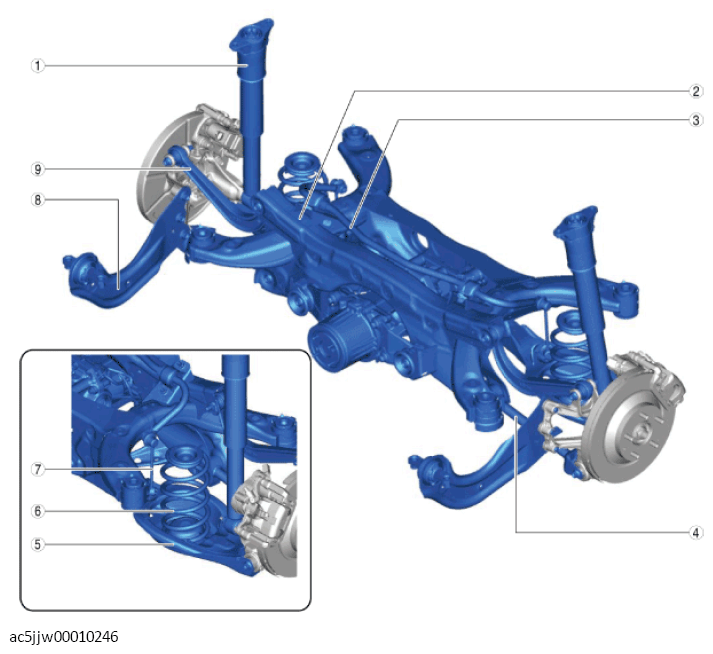

Fig 1: Rear Suspension Related Components - AWD

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear shock absorber (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION .) (See REAR SHOCK ABSORBER INSPECTION .) (See REAR SHOCK ABSORBER DISPOSAL .)
2	Rear crossmember (See REAR CROSSMEMBER REMOVAL/INSTALLATION (2WD) .) (See REAR CROSSMEMBER REMOVAL/INSTALLATION (AWD) .)
3	Rear stabilizer (See REAR STABILIZER REMOVAL/INSTALLATION (2WD) .) (See REAR STABILIZER REMOVAL/INSTALLATION (AWD) .)
4	Rear lateral link (See REAR LATERAL LINK REMOVAL/INSTALLATION .)
5	Rear lower arm (See REAR LOWER ARM REMOVAL/INSTALLATION .)
6	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION .)
7	Rear stabilizer control link (See REAR STABILIZER REMOVAL/INSTALLATION (2WD) .) (See REAR STABILIZER REMOVAL/INSTALLATION (AWD) .) (See REAR STABILIZER CONTROL LINK INSPECTION .)
8	Rear trailing link (See REAR TRAILING LINK REMOVAL/INSTALLATION .)
9	Rear upper arm (See REAR UPPER ARM REMOVAL/INSTALLATION (2WD) .) (See REAR UPPER ARM REMOVAL/INSTALLATION (AWD) .)
