Rear Stabilizer Bracket Removal Note

  1. Secure the rear stabilizer bracket flange using a vise.

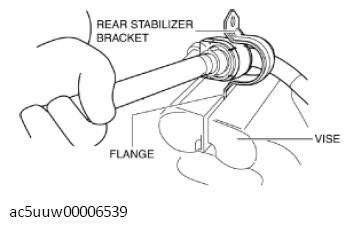

    Fig 1: Securing Rear Stabilizer Bracket Flange Using Vise
    G11428862Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The rear stabilizer bracket may be deformed if it is removed using a vise. When removing the rear stabilizer bracket using a vise, secure the rear stabilizer bracket flange to the vise as shown in the figure, then remove it.
  2. Remove the rear stabilizer bracket.
