Rear Stabilizer Component Installation Note

1. Temporarily tighten nuts A and B shown in the figure.

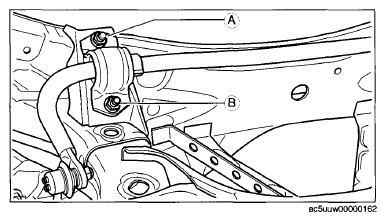

   Fig 1: Rear Stabilizer Component Nuts

   Courtesy of MAZDA MOTORS CORP.
2. Tighten nut A.

   Tightening torque

   21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}

3. Tighten nut B.

   Tightening torque

   21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}

4. Tighten nut A.

   Tightening torque

   21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}

5. Lift up the rear crossmember component using a jack and install the rear crossmember installation nuts.

Fig 2: Supporting Rear Crossmember Component With Jack

Courtesy of MAZDA MOTORS CORP.

Tightening torque

91-111 N.m {9.3-11 kgf.m, 68-81 ft.lbf}
