Rear Shock Absorber Removal/Installation: Notes

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal. (See Suspension Link Installation Note .)

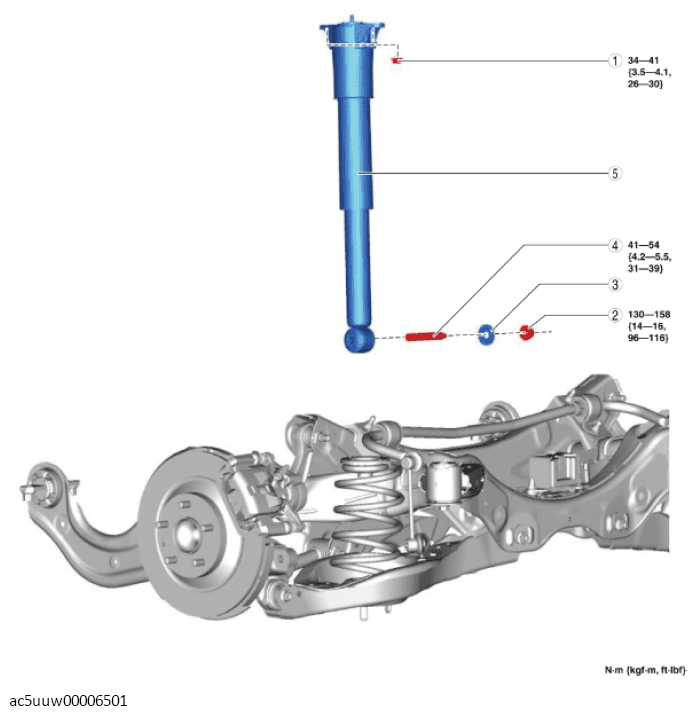

Fig 1: Rear Shock Absorber Related Components With Tightening Torque

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear shock absorber upper nut (See Rear Shock Absorber Upper Nut Removal Note .) (See Rear Shock Absorber Upper Nut Installation Note .)
2	Rear shock absorber lower nut
3	Washer
4	Stud bolt
5	Rear shock absorber
