Rear Lower Arm Removal/Installation: Notes
WARNING:
- Be careful not to allow the coil spring to fly off when removing/installing the coil spring. Otherwise, the coil spring could fly off and cause serious injure or death, or damage to the vehicle.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See Suspension Links Installation Note .)
- Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

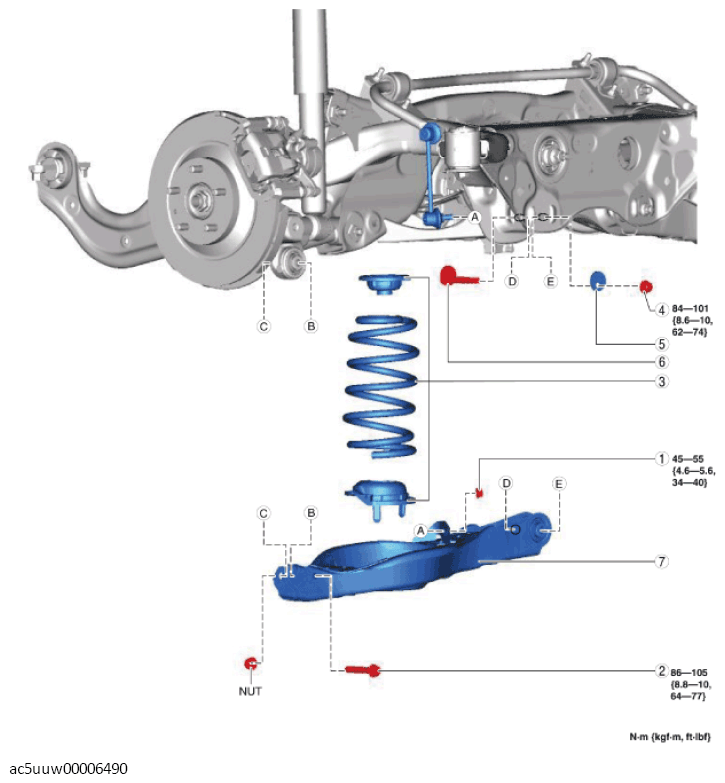

COMPONENT DESCRIPTION
| 1 | Rear stabilizer control link lower side nut (See REAR STABILIZER REMOVAL/INSTALLATION (2WD) .) (See REAR STABILIZER REMOVAL/INSTALLATION (AWD) .) |
| 2 | Rear lowerarm outer bolt (See Rear Lower Arm Outer Bolt Removal Note .) (See Rear Lower Arm Outer Bolt Installation Note .) |
| 3 | Rear coil spring component (See REAR COIL SPRING REMOVAL/INSTALLATION .) |
| 4 | Rear lower arm inner nut (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .) |
| 5 | Cam plate (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .) |
| 6 | Adjusting cam bolt. (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .) |
| 7 | Rear lower arm |
