Rear Coil Spring Removal/Installation: Notes
WARNING:
- Be careful not to allow the coil spring to fly off when removing/installing the coil spring. Otherwise, the coil spring could fly off and cause serious injure or death, or damage to the vehicle.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See Suspension Links Installation Note .)
- When replacing the rear coil spring, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT

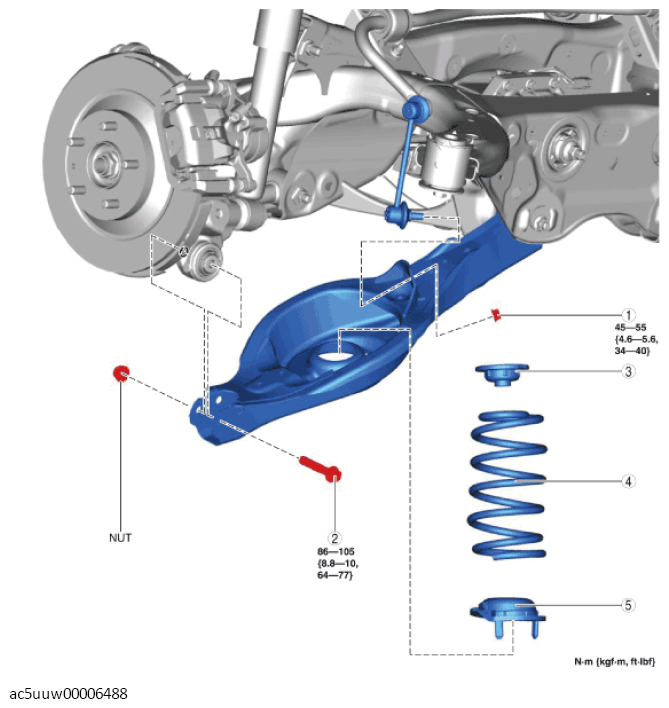

.)COMPONENT DESCRIPTION
1 Rear stabilizer control link lower side nut 2 Rear lower arm outer bolt
(See Rear Coil Spring Removal Note .)3 Upper spring seat rubber 4 Rear coil spring
(See Rear Coil Spring Removal Note .)
(See Rear Coil Spring Installation Note .)5 Lower spring seat rubber
